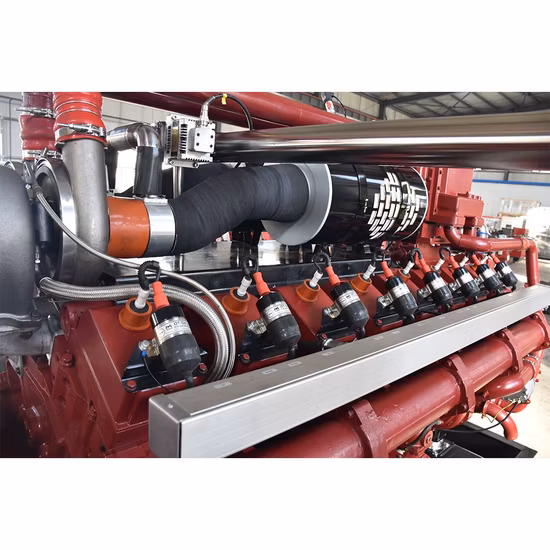

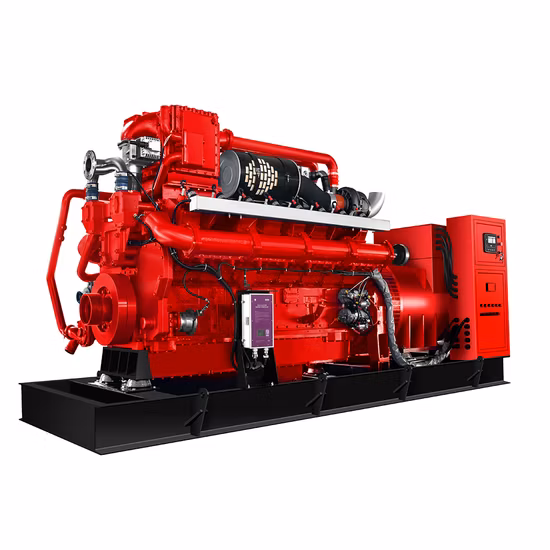

Bio Gas Generator Set/Natural Gas Generator Set/Biomass Gas Generator Set

Basic Info

Model NO.	PDG-XXGF
Power	50-200kW
Standard	Standard
Engine Brand	Deutz or Cummins, Styer, Ricardo
Alternator	Brushless Alternator
Fuel Type	Natural Gas Biogas Fuel
Start Method	Electric Start
Used Field	Oil Field, Factory etc
Option 1	Parallel Grid System
Option 2	CHP
Color	Customers′ Requirements
Engine Control System	Deepsea, Smargen
Lifespan	15 Years
Transport Package	Plywood Package by Seaway
Specification	Engine, Alternator, automatic control panel
Trademark	PULITA ENERGY
Origin	China
HS Code	85022
Production Capacity	300 Sets/Month

Product Description

Bio gas generator set/natural gas generator set/biomass gas generator set

Requirments for biomass:
Biomass gas should be subject to appropriate tar cleaning, filter, gas-liquid separation, and pressure regulation.If the temperature is too high, should also be through cooling treatment, and ensure no liquid ingredients in the gas.Gas temperature≤ 40ºC, gas pressure 2.5~10kpa, pressure change rate≤1kPa/min, tar content≤50mg/Nm3,H2S≤50mg/Nm3, NH3≤20mg/Nm3, moisture content≤20mg/Nm3, impurity size≤5μm,impurity content≤30mg/Nm3, calorific value≥4MJ/ Nm3.

Parameter:

Model Number (Engine Type)	PTG-XXGF(Styer,Jichai,Zichai)
Prime Power/Standby Power	10kW-500kW/110kW-550kW
Rated Speed	1500/1800RMP
Rated Frequency	50/60Hz
Rated Voltage	400V/230V
Phase	AC 3-Phase, 4 wire
Gas consumption	Biomass:2m3.kw/h
Starting System	DC 24V electric motor
Cooling method	Water-cooled
Alternator	Faraday,Siemens
Exciting method	brushless

Our Advantages



Company Information and Certificates

Optional parts:

FAQ:

1.What's your power range of gas generators?

Re: We can offer the range from 10kW~1000kW.

2.What's your delivery time?

Re: 7-25 work days after we get the down payment, if your order is some special engine and alternator, then the delivery time is longer.

3.What's your payment?

Re: We accept T/T, L/C.

4.What's your warranty?

Re: All our products we offer one year warranty or 1500 hours which comes first.

5.What's your MOQ?

Re: One set.

6.What's the frequency of gas generators?

Re: 50Hz/60Hz.

7.Do you have single phase or three phase gas generators?

Re: Sure, we have single phase and three phase gas generators.

8.What's the voltage of your gas generator?

Re: 220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage.
